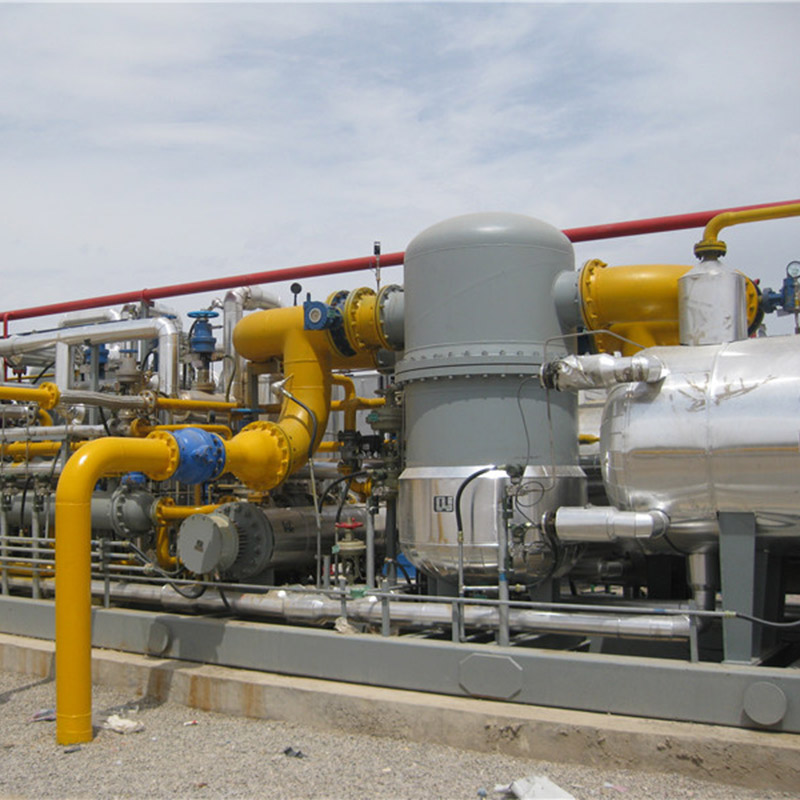

NGL recovery unit

Light hydrocarbon recovery refers to the process of liquid recovery of heavier components in natural gas than methane or ethane. On the one hand, it aims to control the hydrocarbon dew point of natural gas to reach the quality index of commercial gas and avoid gas-liquid two-phase flow.

Products Details

Description

Light hydrocarbon recovery refers to the process of liquid recovery of heavier components in natural gas than methane or ethane. On the one hand, it aims to control the hydrocarbon dew point of natural gas to reach the quality index of commercial gas and avoid gas-liquid two-phase flow. On the other hand, the recovered liquid hydrocarbons have great economic value, which can be used directly as fuel or further separated into ethane, propane, butane or propylene butane mixture (liquefied gas), light oil, etc., and can also be used as chemical raw materials. If the gas is reinjected to keep the reservoir pressure and increase the oil and gas recovery, C2+ should be removed as much as possible. Why to recover natural gas liquids: Improve the quality of natural gas, reduce hydrocarbon dew point and prevent liquid hydrocarbon condensation in pipeline transportation; The recovered condensate products are important civil fuel and chemical fuel; The comprehensive utilization rate of resources is provided, which has good economic benefits.

Main equipment

Model no.

NGLC 65-35/25

NGLC 625-35/15

NGLC 625-35/30

NGLC 625-35/60

NGLC 625-35/80

NGLC 625-35/140

Standard gas volume X10Nm3/d

1.5

1.5

3.0

6.0

8.0

14.0

Device elasticity X104 Nm3/d

0.7-2.25

0.7-2.25

1.5-3.6

4.5-6.5

4.0-9.0

8.0-15.0

Process method

Alcohol injection and hydrocarbon collection

Dehydration and hydrocarbon collection

Product Type (mixed hydrocarbon + dry gas)

Dry gas (into pipe network)

Dry gas (CNG / inlet pipe network)

Dry gas content

Meet the requirements of pipeline transportation

<1 ppm

C3 yield

>80% (Improve efficiency according to user requirements)

Applicable ambient temperature

-40-50 ℃

Inlet pressure

0.1-10.0 MPa

Dry gas outlet pressure

4.0-23.0 MPa

Design pressure of hydrocarbon mixing tank

2.5 MPa

Explosion-proof grade

ExdIIBT4

The control mode

PLC + upper computer

Skid sizes

LXWXH: 8000-17000X3500X3000 mm
